Screw
Air-ends

Industrial & Portable applications
TM.I.C. is specialized in manufacturing standard & high-pressure Oil-Injected Rotary Screw Compressors (Air- Ends) equipped with Integrated Gear - Box. Our single stage Air Ends are able to reach discharge pressure up to 20 barg (290 psig).
Read more
Oil-injected screw compressors for air applications designed by  Termomeccanica Industrial Compressors
Power range (kW)
Power range (HP)
Flow range (m3/min)
Flow range (cfm)
Max allowable working pressure (bar)
Max allowable working pressure (psig)
* All the measurement are referred to 10 barg
SCI 7
min
max
Power range (kW)
4
7.5
Power range (HP)
5.4
10
Flow range (m3/min)
0.4
0.8
Flow range (cfm)
14
28
Max allowable working pressure (bar)
13
13
Max allowable working pressure (psig)
190
190
Show
SCI 8
min
max
Power range (kW)
6
18.5
Power range (HP)
8
25
Flow range (m3/min)
0.7
2.5
Flow range (cfm)
24
90
Max allowable working pressure (bar)
13
13
Max allowable working pressure (psig)
190
190
Show
SCI 10
min
max
Power range (kW)
11
37
Power range (HP)
15
50
Flow range (m3/min)
1.5
5.5
Flow range (cfm)
53
194
Max allowable working pressure (bar)
13
13
Max allowable working pressure (psig)
190
190
Show
SCI 10 ALG
min
max
Power range (kW)
11
37
Power range (HP)
15
50
Flow range (m3/min)
1.5
5.5
Flow range (cfm)
53
194
Max allowable working pressure (bar)
13
13
Max allowable working pressure (psig)
190
190
Show
SCI 7 compact screw compressor by TMIC, designed for industrial air applications.

Power range up to 7.5 kW (10 hp)

Flow range up to 0.8 m3/min

Max pressure 13 barg (190 psig)

Power range up to 18.5 kW (10 hp)

Flow range up to 2.5 m3/min

Max pressure 13 barg (190 psig)

Power range up to 37 kW (50 hp)

Flow range up to 5.5 m3/min

Max pressure 13 barg (190 psig)

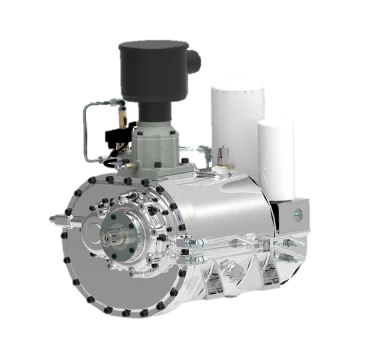

Close-up of a compact SCI 10 ALG screw compressor, featuring a cylindrical metallic  body with a black filter on top and white filter elements on the side.

Power range up to 37 kW (50 hp)

Flow range up to 5.5 m3/min

Max pressure 13 barg (190 psig)
